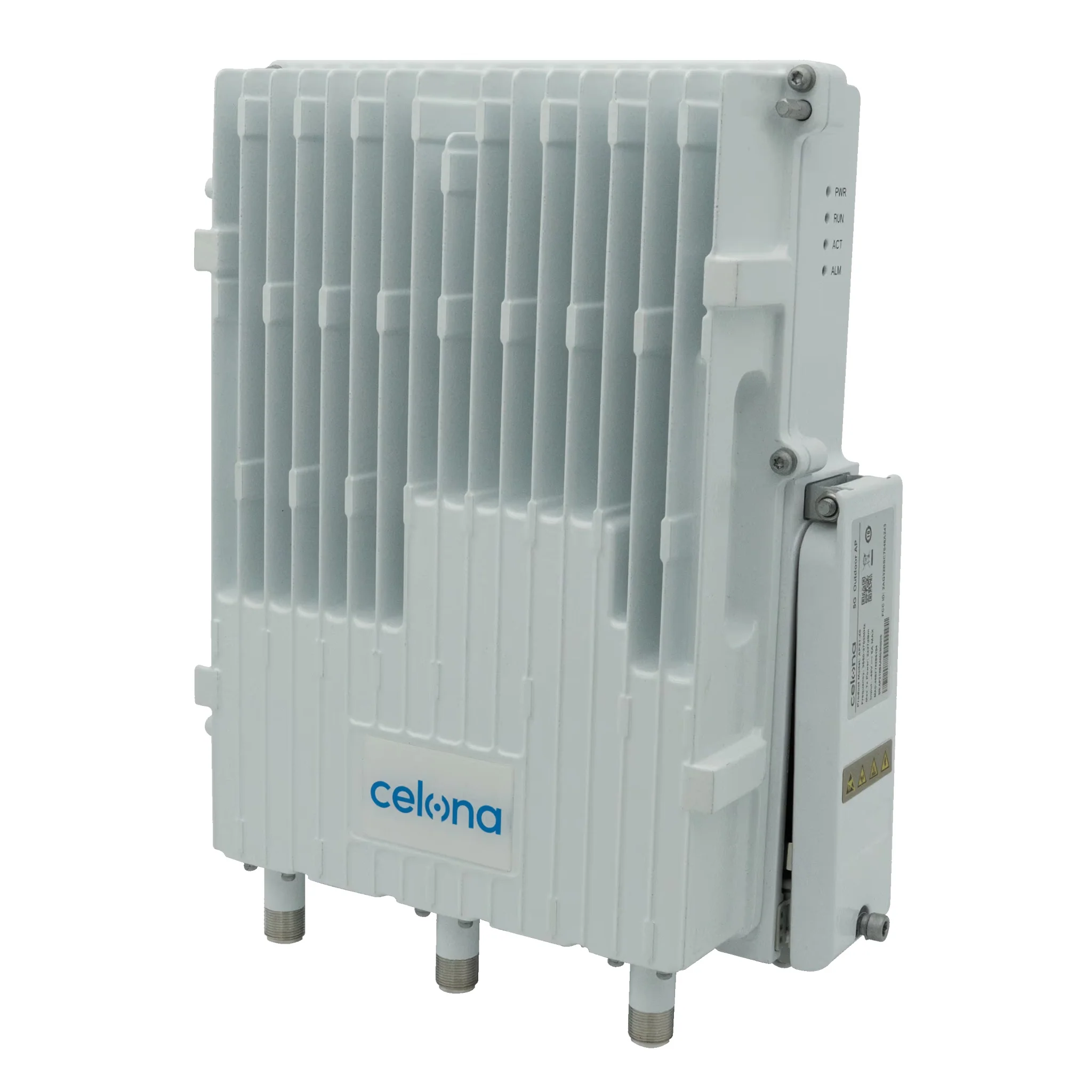

The Celona AP 21 is a ruggedized outdoor 5G NR access point designed for enterprise and industrial private network deployments. With support for a wide range of global sub-6 GHz bands from 3.3 to 4.9 GHz, it’s built for high-performance connectivity in challenging outdoor and semi-industrial environments including shipping ports, oil refineries, and large campus installations.

The AP 21 delivers up to 1 Gbps of aggregate throughput with 2x2 MIMO and up to 100 MHz bandwidth. It supports up to 128 concurrent 5G devices and offers one-way latency under 10ms. With a maximum transmit power of 37 dBm per port (Band n48), the AP 21 enables extended range coverage using external directional or omnidirectional antennas. The unit is IP66-rated, C1D2 certified for hazardous locations, and supports both fiber and copper backhaul. Celona’s cloud-based Orchestrator platform provides centralized management, while the integrated Celona Edge handles core network functionality.

Available in band-specific variants. This model supports Band n48 (3550–3700 MHz).

Deployment Requirements

To deploy the Celona AP 21, you’ll need:

• SAS registration: Required for CBRS Band n48. Registration is managed via Celona Orchestrator.
• IP backhaul: Fiber or Ethernet backhaul supported via SFP+ or RJ-45 interface.
• EPC or core network: Provided through Celona Edge software as part of the integrated 5G LAN solution.
• Power and mounting: ±48V DC input required. Power adapter and surge protector included. Site must provide wall or pole mount and AC power source.
• External antennas: Required. Celona offers compatible omnidirectional and sector antennas, sold separately.
• GPS antenna for synchronization: Included in the kit. Required for timing and synchronization.
• Configuration or management access: Managed centrally via Celona Orchestrator. Credentials provided through provisioning.

Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.

Key Features

• Supports 5G NR on Band n48 (3550–3700 MHz) with TDD operation and up to 100 MHz bandwidth.
• Delivers up to 1 Gbps total throughput with 2x2 MIMO and 256 QAM modulation.
• Maximum transmit power up to 37 dBm per port on Band n48 with support for extended outdoor range beyond 1 km.
• Handles up to 128 concurrently connected 5G devices per access point.
• Includes both RJ-45 and SFP+ interfaces for flexible copper or fiber backhaul.
• Rugged IP66-rated and C1D2-certified enclosure for deployment in hazardous industrial environments.
• Integrated GPS timing with included antenna. Differential and common-mode lightning protection on power input.
• Centralized cloud management via Celona Orchestrator with plug-and-play provisioning.

Kit Contents

• Celona AP 21 (Band n48 variant)
• Mounting bracket for pole or wall installation
• ±48V DC power adapter with regional plugs
• GPS antenna
• SFP optical module
• Power surge protector

We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
